Efficient Computing
Robust Stability and Reliability
Flexible Expansion
Cutting-Edge Technologies Adopted

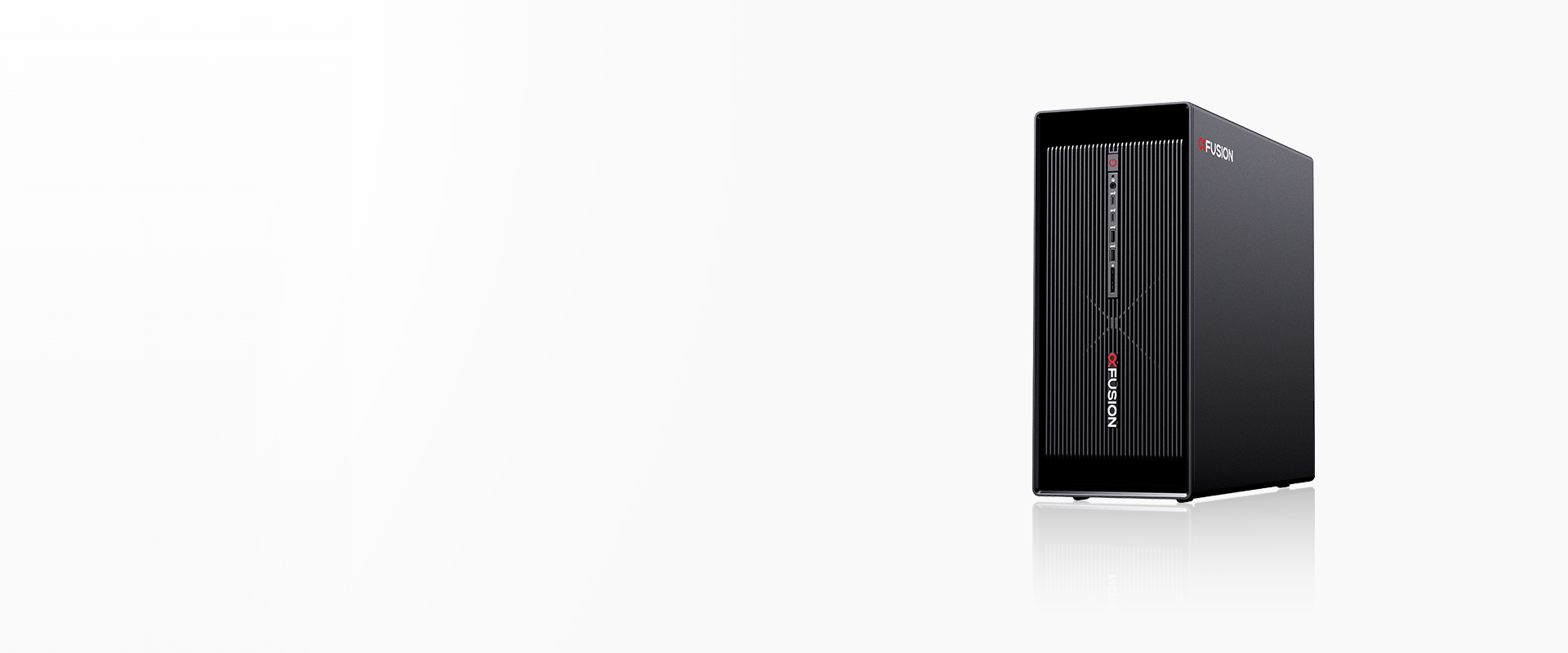

xFusion Station X3 8000
Main application scenarios:
Industrial Design
Industrial Simulation
Intelligent Manufacturing
Digital Twin
Architectural and Civil Engineering
Digital Content Creation
Scientific Research and Education
xFusion Station X3 8000, equipped with the new Intel® Core™ processor and a high-performance graphics card, boosts the speed and efficiency across dynamic workflows from 2D/3D, CAD design to entry-level VR content creation. It is suitable for industries including intelligent manufacturing, digital content creation, scientific research and education, and energy and infrastructure.
xFusion Station X3 8000
Main application scenarios
Industrial Design
Industrial Simulation
Intelligent Manufacturing
Digital Twin
Architectural and Civil Engineering
Digital Content Creation
Scientific Research and Education
Efficient Computing
Top Computing Capabilities
Intel@Core™13th/14th Gen Flagship Processors
- 13th/14th Gen Intel@Core™，CPUs deliver 30% higher multi-core performance,handling concurrent
CAD/CAE/AI workloads. - 192 GB DDR5-4400 ECC memory ensures zero-error operation during 72-hour sustained simulations.
Professional Graphics and AI acceleration
Comprehensive Support for Professional-Grade
and Consumer-Grade Graphics Cards
- Compatible with all series of professional-grade and consumer-grade graphics cards.
- Features support for PCIe 5.0 ultra-high-speed channels, offering a bandwidth of 128 GB/s—
double that of PCIe 4.0—while maintaining compatibility with next-generation AI accelerators.

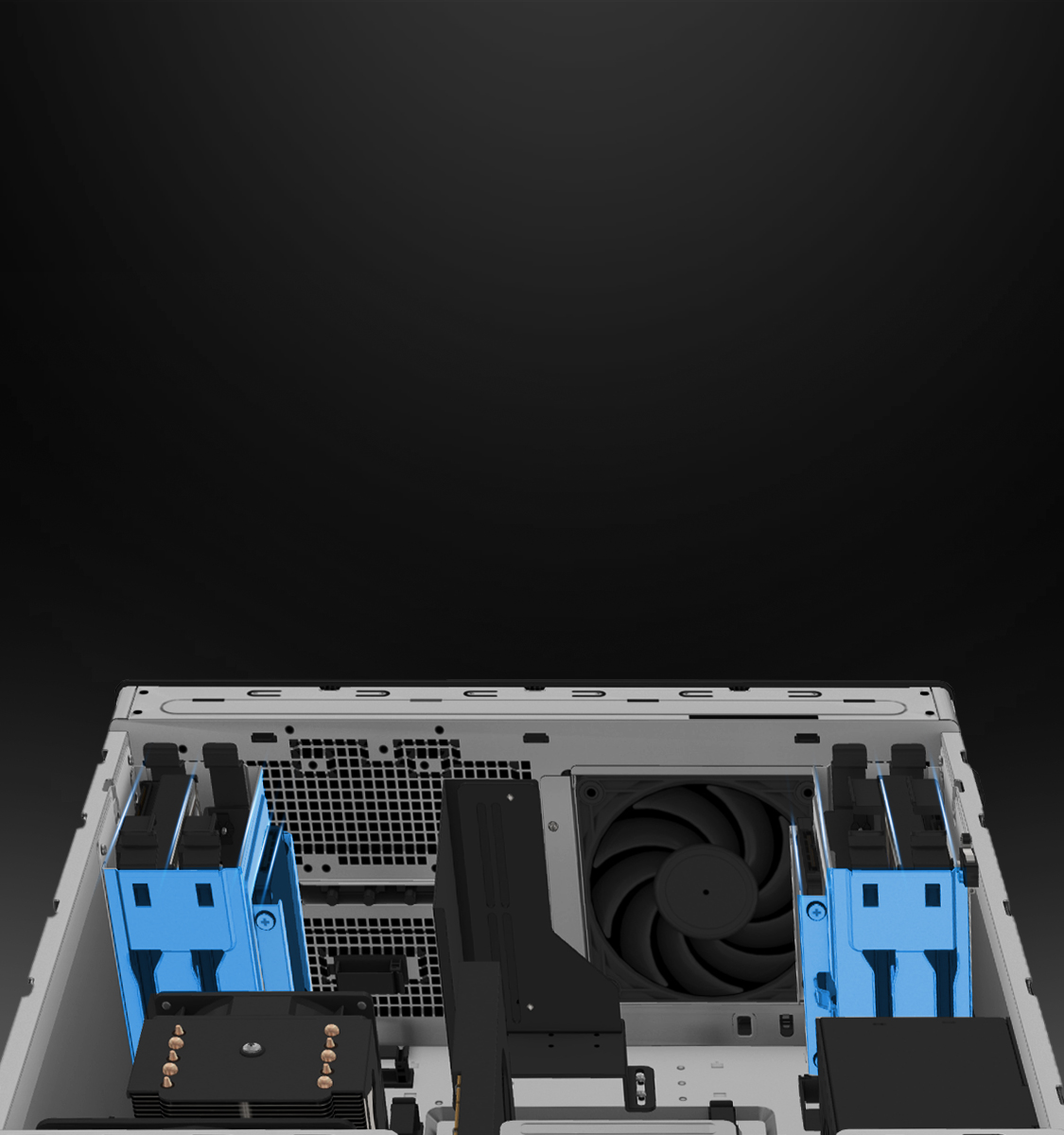

Robust Stability and Reliability
ECC Memory and Excellent
Heat Dissipation Design
Ensure non-stop operation under sustained high loads
32L Chassis + 1200 W PSU
100% full load without frequency reduction
Flexible Expansion
PCIe 5.0/4.0/3.0
Multi-spec Expansion Slots
Designed to meet demanding graphics, storage, and professional expansion needs Adaptable to a variety of work environments
USB-C (20 Gbit/s),
HDMI+DP Multi-screen Output
Efficient data transmission and seamless connectivity with peripheral devices

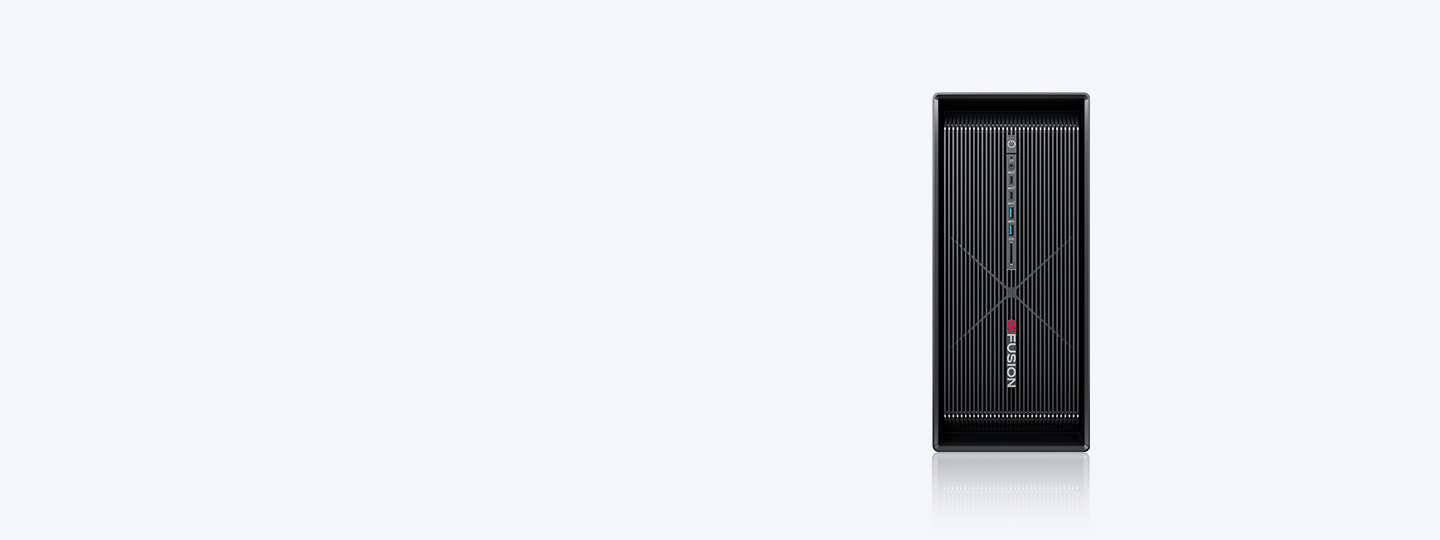

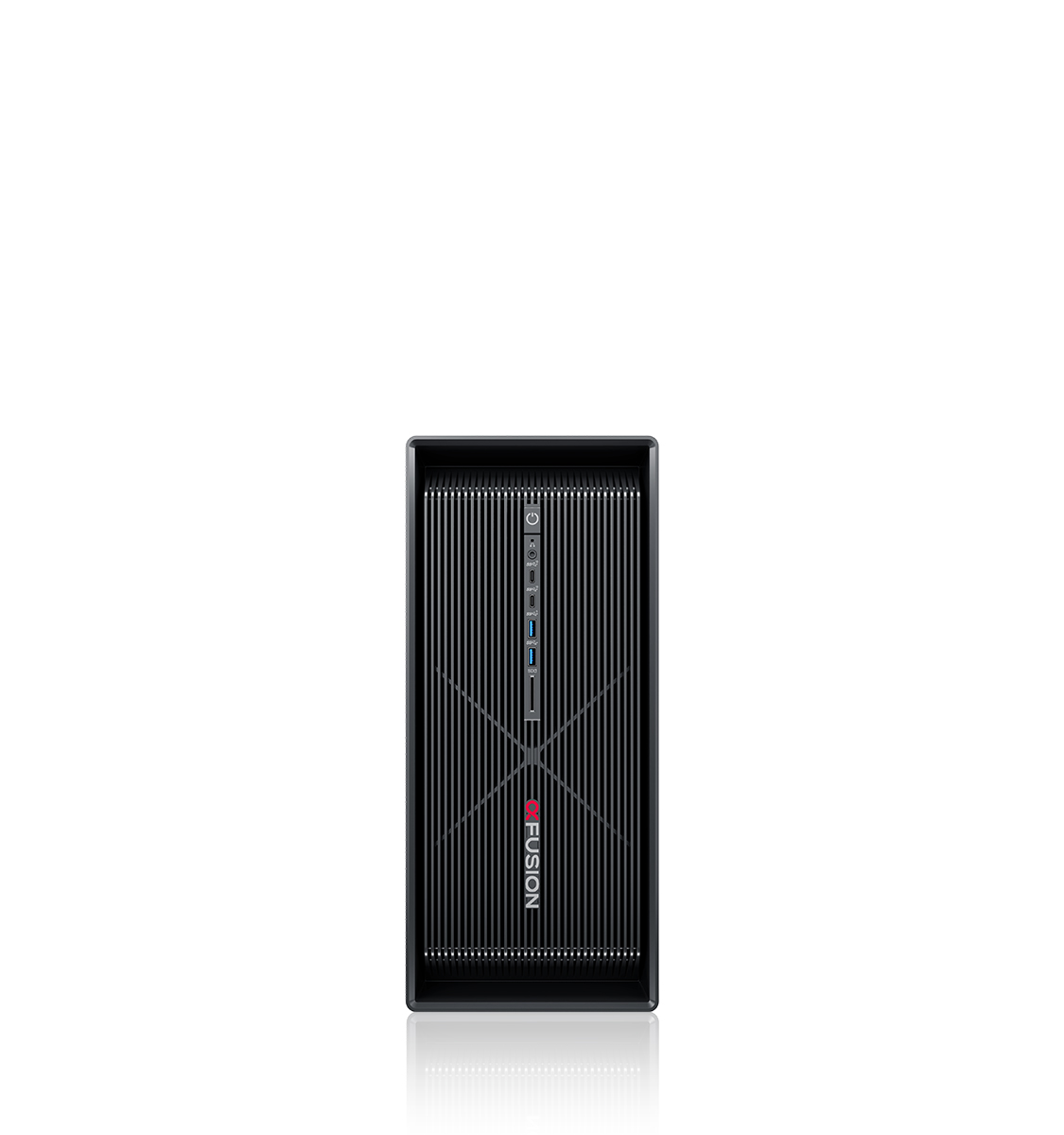

Cutting-edge Technologies Adopted
Supports the latest CPUs and GPUs and complies
with PCIe 5.0 standards
standing at the cutting edge of technology for the foreseeable future
Technical Specifications
xFusion Workstation X3 8000
32L tower workstation
Intel Core i3, i5, i7, and i9 13th and 14th generation processors, with a maximum of 24 cores
Intel W680
4 x 48 GB DDR5 UDIMMs (non-ECC or ECC), delivering up to 192 GB capacity
A maximum of 2 x 3.5″ + 2 x 2.5″ SATA HDDs/SSDs
A maximum of 3 x NVMe M.2 SSDs (PCIe4.0 x4 mode supported)
2 x 2.5GE RJ45 ports
1 x PCIe® 5.0 x16 slot
1 x PCIe® 4.0 x16 slot(PCIe x4 signals supported)
1 x PCIe 3.0 x4 slot
1 x PCIe 3.0 x1 slot

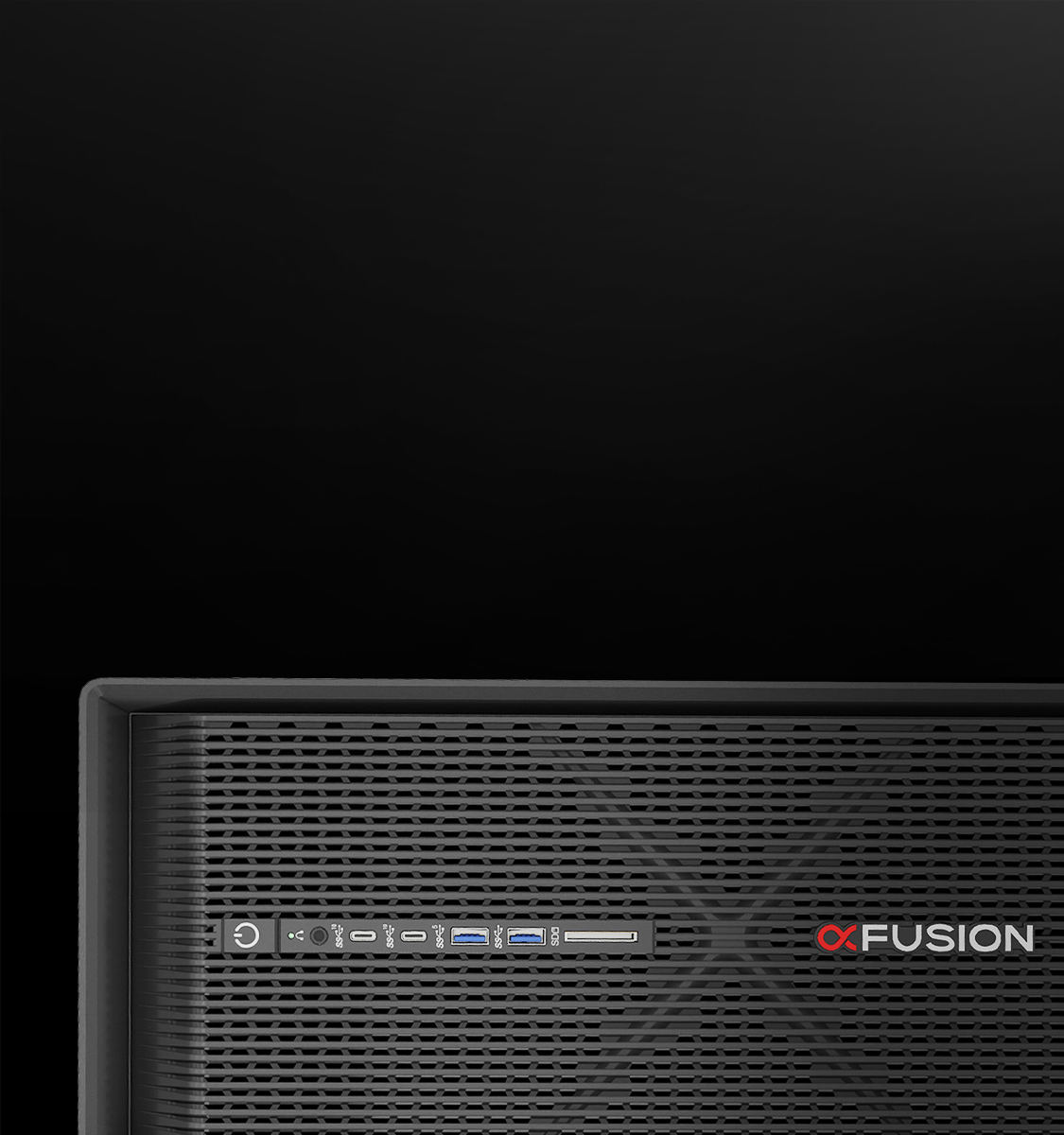

Front panel:
2 x USB-C (USB 3.2 Gen 2×1 10 Gbit/s) ports
2 x USB-A 3.0 (USB 3.2 Gen 1×1 5 Gbit/s) ports
1 x universal combo audio port (3.5 mm) port
1 x front 3-in-1 media card reader (USB 2.0)
1 x power button
1 x HDD LED
Rear panel:
2 x USB-C (USB 3.2 Gen 2×2 20 Gbit/s + USB 3.2 Gen 2×1 10 Gbit/s) ports
2 x USB 2.0 type A ports
4 x USB-A (USB 3.2 Gen 2×1 5 Gbit/s) ports
2 x USB-A (USB 3.2 Gen 1×1 5 Gbit/s) ports
2 x DisplayPort 1.4 ports
1 x HDMI port
1 x VGA port (optional BMC)
2 x Intel® 2.5 Gbit/s Ethernet ports
1 x line-in (3.5 mm) audio port
1 x line-out (3.5 mm) audio port
1 x MIC-in port
600 W \750 W \1200 W
The BMC module is optional, supporting remote management, hardware monitoring, and out-of-band management
