New-Generation 4U 2-Socket Rack Server
Main application scenarios:
Distributed storage
Warm and cold storage

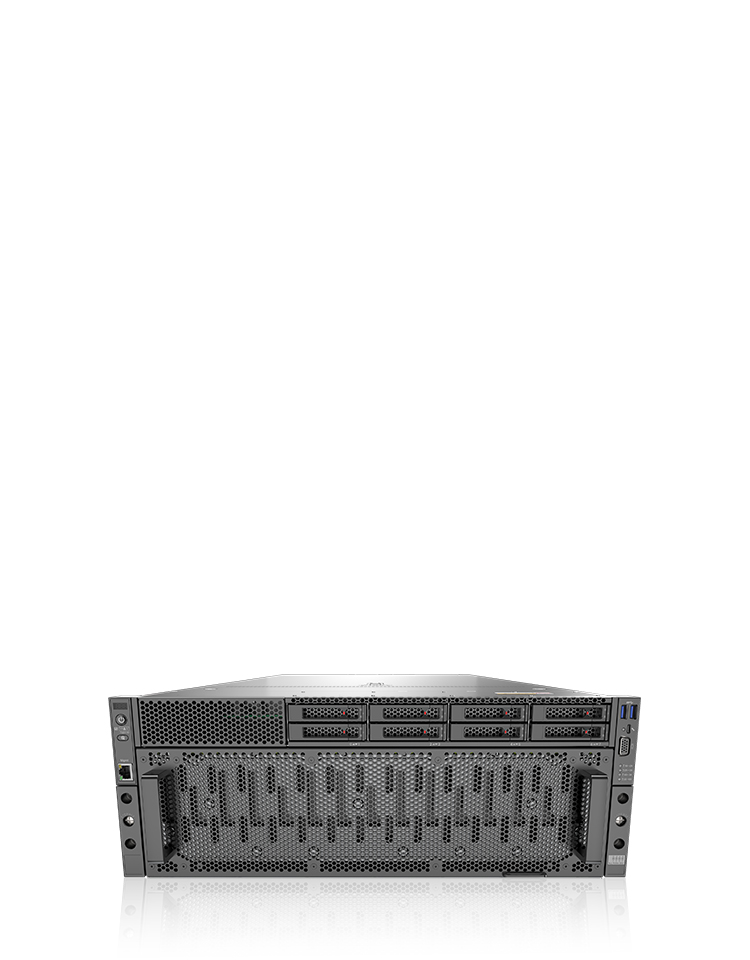

FusionServer 5298 V7 (5298 V7) is a versatile new-generation 4U 2-socket rack server tailor-made to meet the diverse needs of industries such as the Internet, telecoms, finance, and government enterprises.
With its broad range of applications, the 5298 V7 excels in distributed storage as well as warm and cold storage for big data, backup, and archiving.
Boasting massive storage capacity, low power consumption, solid reliability, streamlined management, and effortless deployment, the 5298 V7 sets a new benchmark for server excellence.
New-Generation
4U 2-Socket Rack Server
Main application scenarios:
Distributed storage
Warm and cold storage
Oceanic Storage

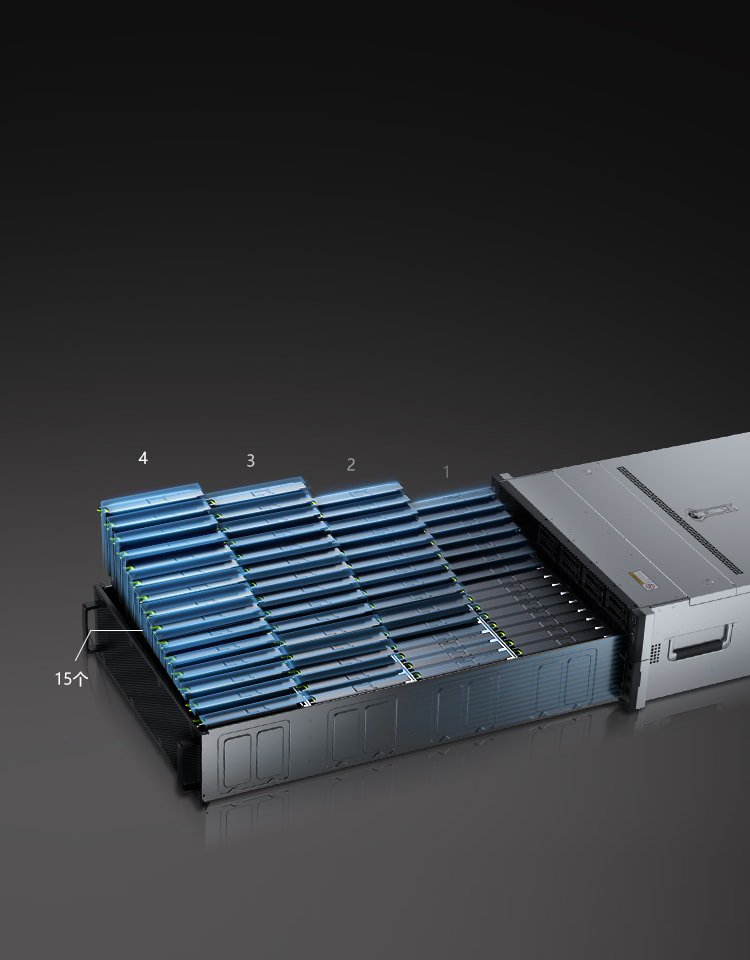

Unrivaled Storage Capacity
Up to 60 x 3.5" SAS/SATA drives, reducing TCO by over 30%

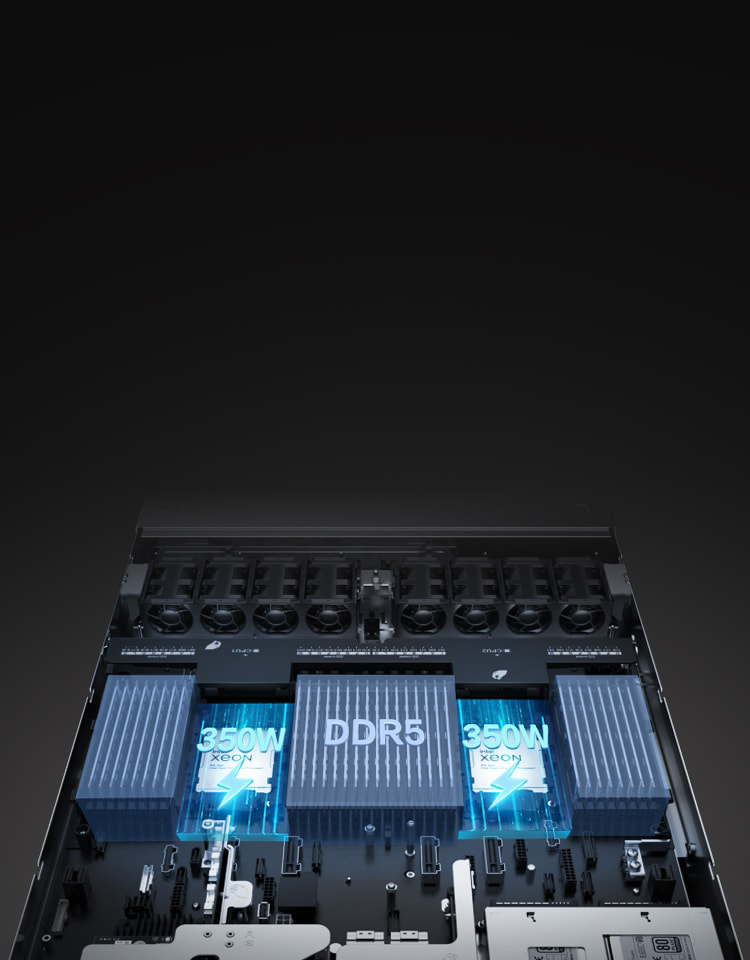

Exceptional Computing
4th/5th Gen Intel® Xeon® Scalable processors with up to 385 W TDP and support for 32 x DDR5 DIMMs

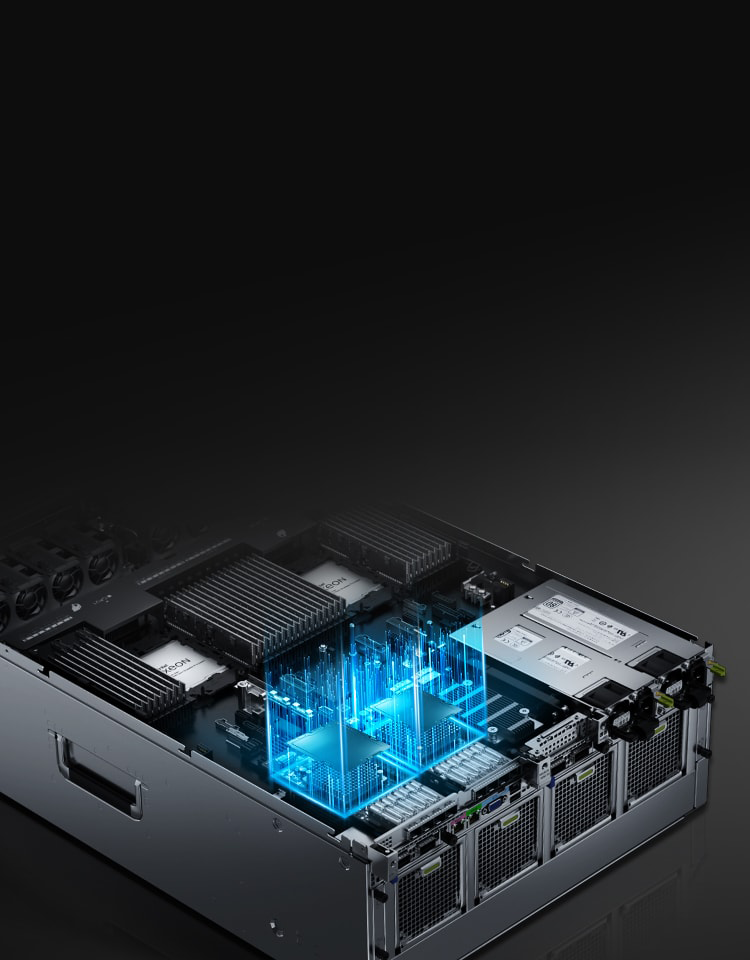

Faster Connectivity for Faster Applications
PCIe 5.0 and 400 Gbit/s NIC interconnection
Trusted Security

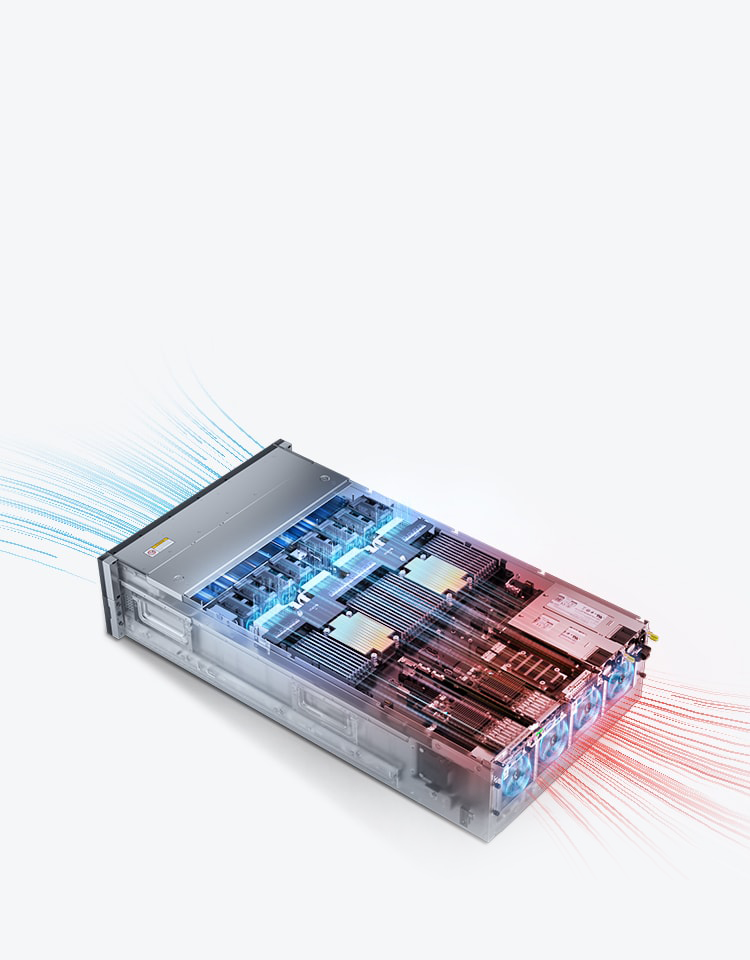

50% Better Heat Dissipation Capability Than a Single Heat Sink
Advanced Extended Volume Air Cooling (EVAC): reliable cooling with enhanced temperature adaptability

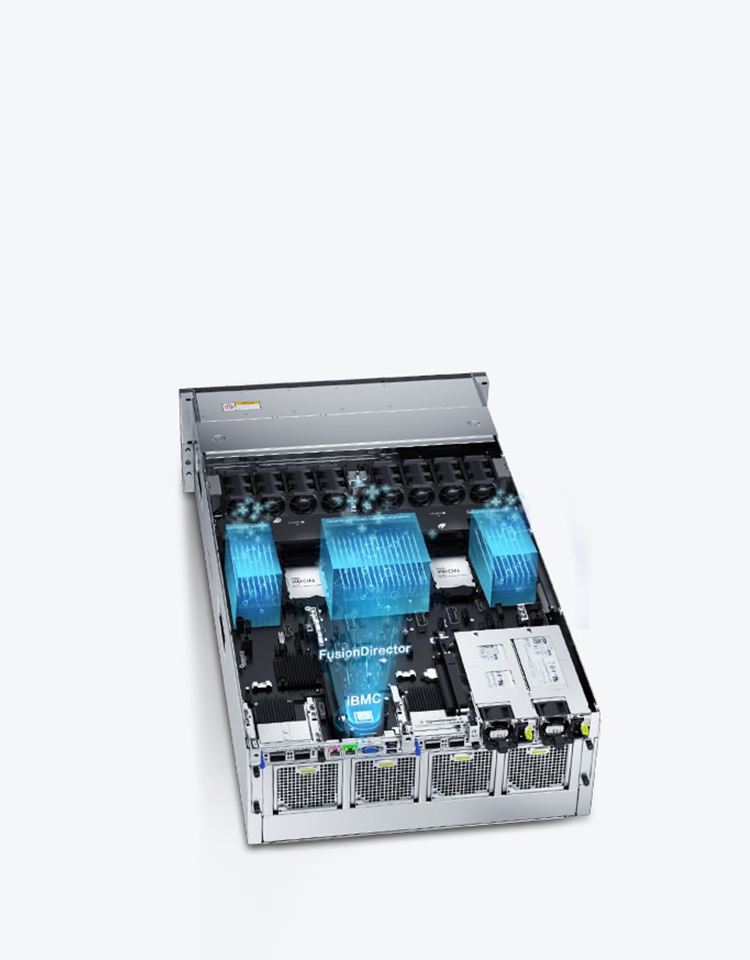

66% Less System Downtime
Unique AI memory fault self-healing ensures stable system running
Efficient Power

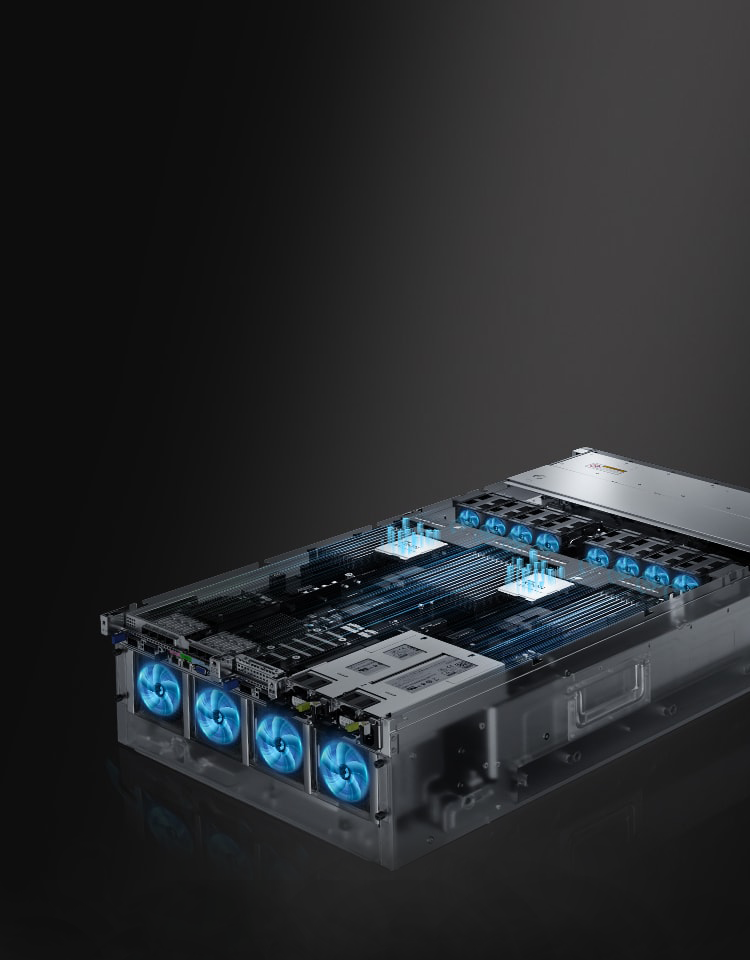

Saving Energy by up to 8% Compared with the Industry Average
The unique algorithm is provided for the lowest power consumption of fans and CPUs

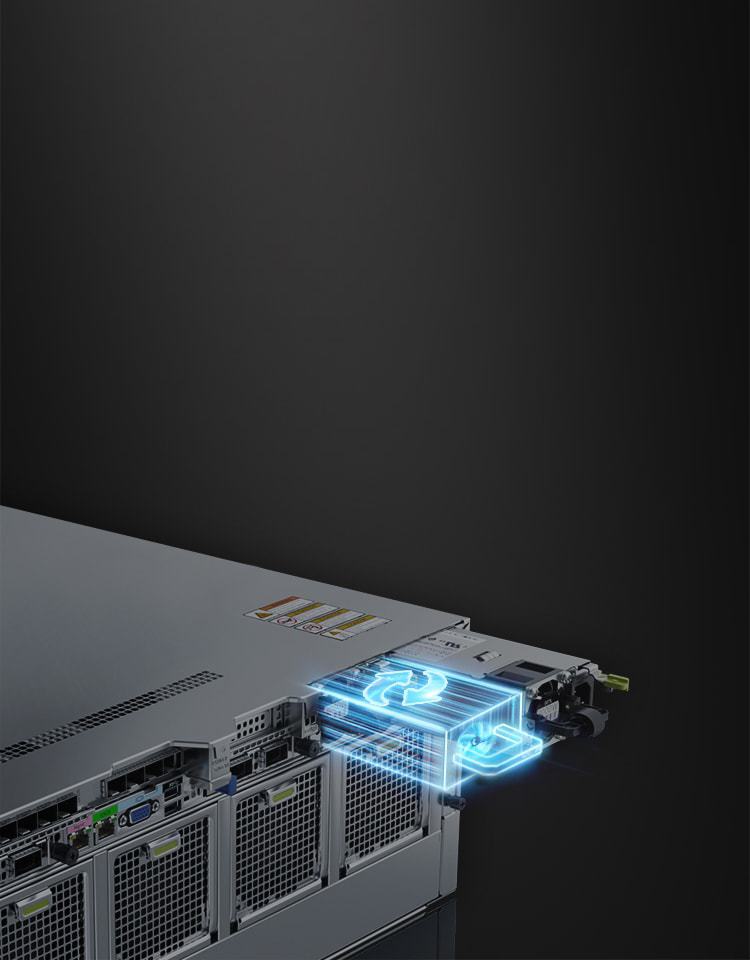

Industry-leading Power Supply Technology for Higher Efficiency
Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

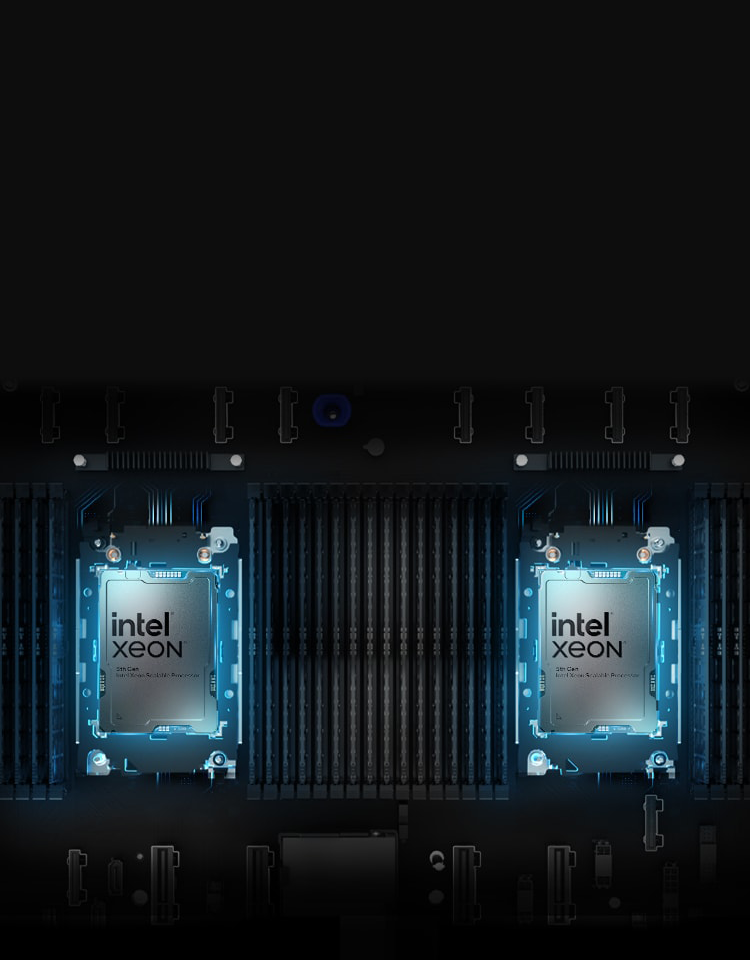

Intelligent Service Awareness, Dynamic Load Adjustment
The CPU working frequency is dynamically adjusted based on the actual service load
Intelligent O&M
Intelligent O&M
Technical Specifications
4U rack server
2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385W TDP per processor
Emmitsburg PCH
32 x DDR5 DIMMs, with up to 5600 MT/s speed
Various drive configurations with hot-swappable capability:
- 10 x 2.5″ SAS/SATA drives*
- 60 x 3.5″ SAS/SATA drives
- 8 x NVMe SSDs
- Dual M.2 SSDs
- RAID 0, 1, 10, 1E, 5, 50, 6, or 60
- Supercapacitors for cache data protection from power failures
- RAID level migration, drive roaming, self-diagnosis, and remote web settings
2 x FlexIO slots dedicated for 2 x OCP 3.0 NICs, allowing for on-demand selection and hot swap
Up to 6 x PCIe expansion slots, including one dedicated for the RAID controller card and 2 x FlexIO expansion slots dedicated for OCP 3.0 NICs, and supporting PCIe 5.0
- Computing area: 8 x hot-swappable counter-rotating fan modules in N+1 redundancy
- Storage area: 4 x hot-swappable counter-rotating fan modules in N+1 redundancy
1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
- The Intelligent Baseboard Management Controller (iBMC) chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening.
- iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, agentless management, and remote control, simplifying management complexity.
- Optional FusionDirector management software offers five intelligent management features for intelligent, automated, visualized, and refined management throughout the lifecycle.
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler. For more, click here
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, Trusted Cryptography Module (TCM), security bezel, secure boot, and chassis intrusion detection
5°C to 35°C (41°F to 95°F), compliant with ASHRAE Class A1/A2
CE, NRTL, CCC, FCC, VCCI, and RoHS
L-shaped and adjustable guide rails
175 mm x 447 mm x 850 mm (6.89 in. x 17.60 in. x 33.46 in.)
*Configuration details are subject to the technical white paper
