Product Introduction

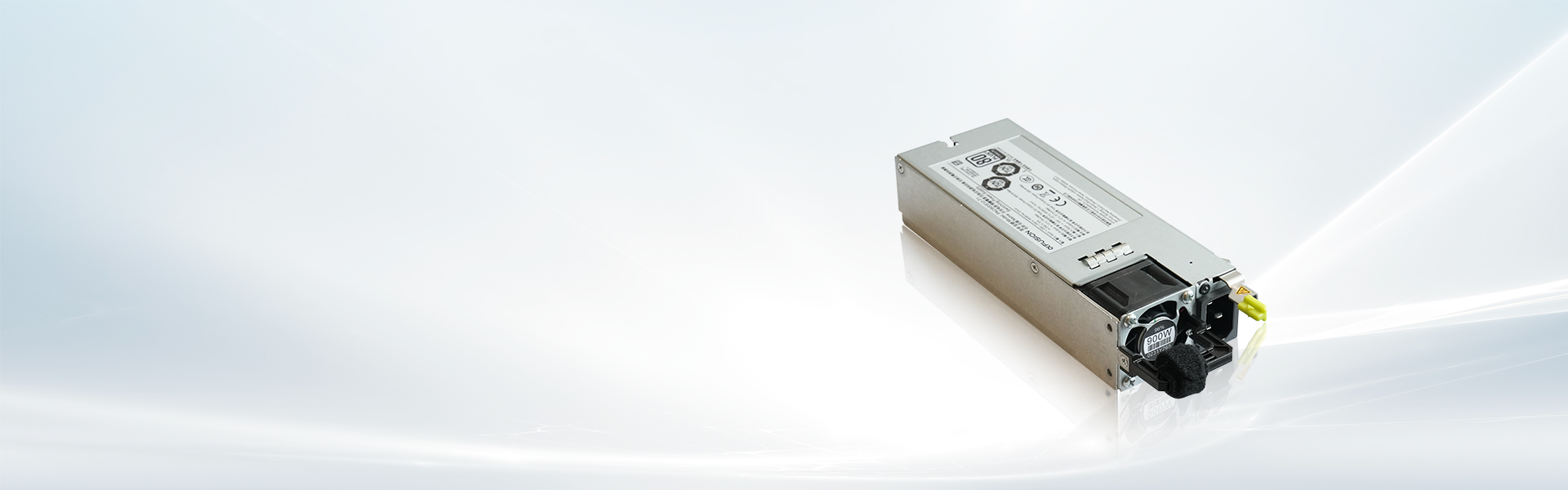

The PAC900S12-TE supports 90-264 V AC and 180-300 V DC input voltage ranges. The PSU provides single output with two modes: MV12 and MV6, delivering a rated output power of 900 W. It supports hot-swapping and current-sharing, enabling 1+1/2+2 parallel redundancy operations. The PSU provides an I2C communication, enabling the reporting of the vendor, model, and version information. With the functions of the black box and online upgrade, the PSU complies with safety requirements and IT equipment safety standards.
Product Feature
• 80 PLUS Titanium certification
• Platinum efficiency: 96% @ 50% load
• 1+1/2+2/3+3 parallel redundancy operation
• PMBus 1.2 with the black box
• High-precision input efficiency reporting: 3% @ 50% load
• Hot standby/cold standby/deep sleep (input power less than 1 W) and hot swapping
• Two input systems: AC and HVDC
• Two output modes: MV12 and MV6
• Overvoltage, undervoltage, overcurrent, short circuit, overtemperature, and ORing isolation protection
• CE, TÜV, CCC, NRTL, and CB certifications
• IEC 62368-1, EN 62368-1, and GB 4943.1-2022 compliant
• RoHS compliant
Technical Specifications
183.0 mm x 68.0 mm x 40.3 mm (7.20 in. x 2.68 in. x 1.58 in.)
<2 kg (4.41 lb)
94% @ 50% load
3 W
IP20
500,000 h
90 to 264 V AC & 180 to 300 V DC
220 V AC single-phase and 110 V AC dual-live wire
50 to 60 Hz
220 V AC: 10
≥ 0.98 @ 50% load
≤5% (230 V AC/50 Hz, 30% to 100% load)
11.7 to 12.6 V DC
900 W
100% load: 10 ms
≤120 mVp-p
≤ ±5% (50% to 100%)
12 V DC: 540 to 22,000 uF
PMBus1.2
Black box, online update, and alarm reporting
Undervoltage, overvoltage, overcurrent, short circuit, and overtemperature protection
5°C to 50°C (41°F to 122°F)
–40°C to +85°C (–40°F to +185°F)
5% to 95%
IEC 62368-1, EN 62368-1, and GB 4943.1-2022
CE, TÜV, CCC, NRTL, and CB
